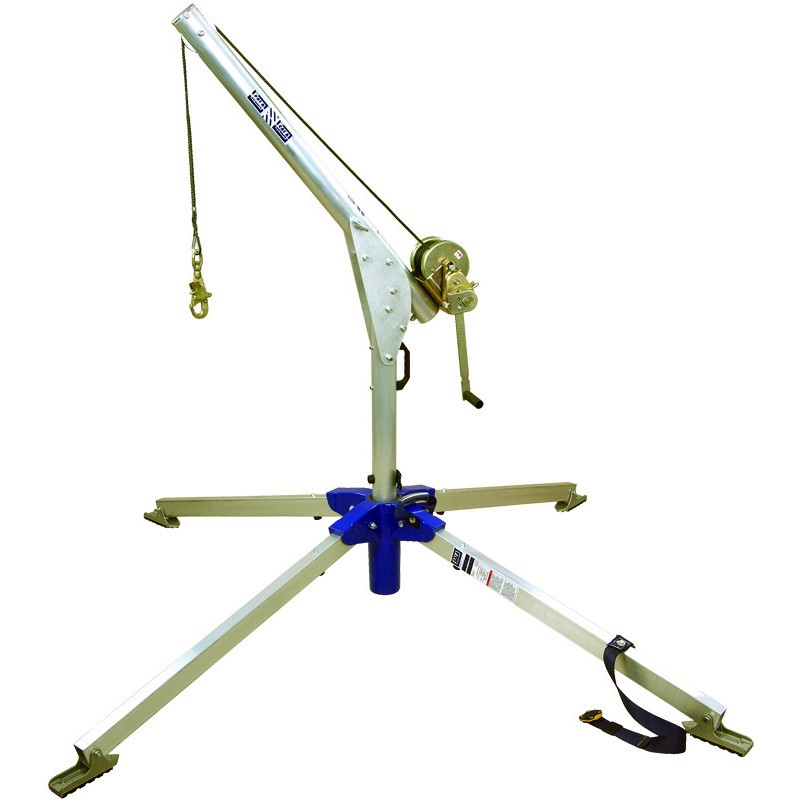

DBI Sala Advanced Rescue Davit System
The DBI Sala Advanced Rescue Davit System is 2 pc rescue system with folding base and arm with a 50' synthetic rope winch. This free-standing davit rescue system is used for confined space rescue/retrieval and requires no special tools to set-up or operate. With its superior design, this davit system has four legs, and a pivoting arm that allows the victim to rotate out and away from the opening, then lowered to the ground safe and secured.
Features:
-
2-piece rescue davit system
-
360 degree pivoting arm
-
Carrying handle and securing straps
-
Quad-pod style foldable base
-
Self leveling feet
-
50 ft. (15 m) 1/4" (6.4mm) dia. Technora 12-Strand Rope
-
Permanent handle with fold-away crank
-
5.1:1 gear ratio mechanical advantage
-
Lightweight, corrosion resistant aluminum construction
Specifications:
| Capacity | 350 lbs. (159 kg) |
| Brand | DBI-SALA® |
| Sub Brand | Advanced™ |
| Size | 50 ft. (15.2 m) |
| Install Type | Portable |
| Lifeline Type | Technora Rope |
| Velocity Ship | Yes |
| iSafe Equipped | No |
| Lifeline Length | 50 ft. (15.2 m) |
| Hook | Zinc Plated Steel |
| Label | Polyester |
| Lifeline | 1/4" (6.4mm) dia. Technora 12-Strand Rope |
| Winch/SRL Housing | Zinc Plated Steel |
| Model | 8302500 |
| Physical Weight | 76.20 lbs (34.6kg) |
| Product Styles | Complete System |
| Product Types | Davit System |
| Standards | Capital Safety Gen. Mfg. Req. |
